Can I Create Topic Transitions in My Replay 360 Video?

June 18, 2020   Yukon Learning    Leave a Comment

Do you have a lot to say in one Replay 360 video? Perhaps you have several topics to cover and you want to differentiate segments of information. To divide up content in a helpful and more digestible manner for your learners, we can animate in section headers throughout our Replay 360 project.

The letter Y edits a video reel, alongside the verbiage: Lights, Camera, Replay 360 "2"

When it’s time to introduce or change subjects in e-Learning, we like to make that shift clear so learners can focus on learning. This often takes the form of a section title slide in Storyline 360, but in a Replay 360 video, you might use the Lower Third feature, narrate using transitional language, create a title graphic, or some variation of these.

Let’s revisit the topic of video and get started creating custom transition graphics to use in Replay 360.



Creating the Image

Assume you want to reserve the Lower Third to display more specific information on screen. This is when you might elect to create a title graphic using shapes within Storyline 360 to introduce the overarching topics.

In a prior post, we shared a method to create fade-in and fade-out effects to begin or end Replay 360 videos with a smooth transition. We’ll apply that concept again today by right-clicking a rectangle in Storyline 360 and saving it as a picture. The difference here is that this time, we’ll also type text into the shape so that it can act as new section title in our video.

This new graphic will fade into the video at the beginning of the topic it’s introducing!

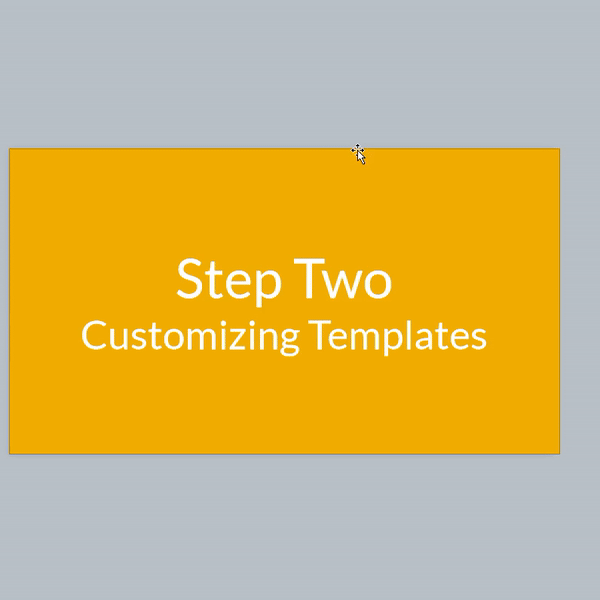

Exporting a rectangle from Storyline 360 that reads "Step Two: Customizing Templates"



Making Room for the Image

Before we can bring our section title image into the Replay 360 project, we need to make space for it. We’ll create space for the image within the video by splitting the video, using the steps below:

  1. Pause the video where you want to place the new section title
  2. Make sure the video track you want is selected and that the playhead line is sitting over the same video (Tip: Select the timeline above the Lower Third track to place the playhead)
  3. Select the Home tab | Split
  4. Move a portion of the video aside to create some space at the split (Tip: You may need to deselect the entire track at this point and reselect individual portions to move them independently)

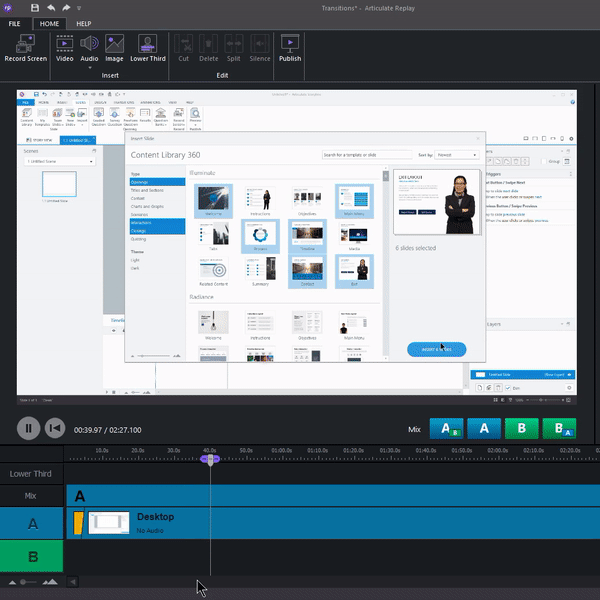

Splitting the video in Replay 360



Incorporating the Image

Now that the picture has space to occupy, let’s bring the image in!

Insert imagery into Replay 360 by going to Home tab | Image. Then, drag the images where, and for how long, on the track you want them to display. (Tip: Sometimes dragged objects almost seem to disappear until the cursor arrives in the drop location)

The last piece is to ensure that when you drag elements within your project, you arrange them close enough together so that the transitional line between them is diagonal, rather than vertical. This diagonal line creates a fade animation from one item to the next, instead of the abrupt transition you’d experience with a vertical line. In the graphic below, you might notice the difference between the two before the object is dropped.

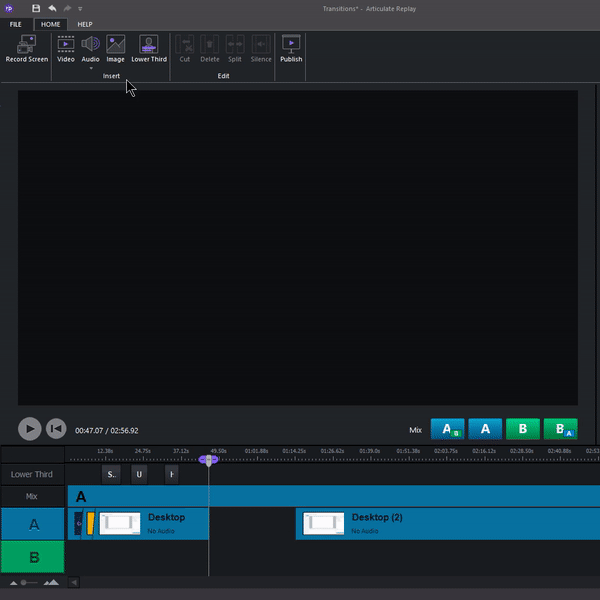

Inserting an image into Replay 360 and dragging it to its position in the newly-split video track



That’s a Wrap

Using this method, you’ll be able to animate custom graphics throughout your Replay 360 video.

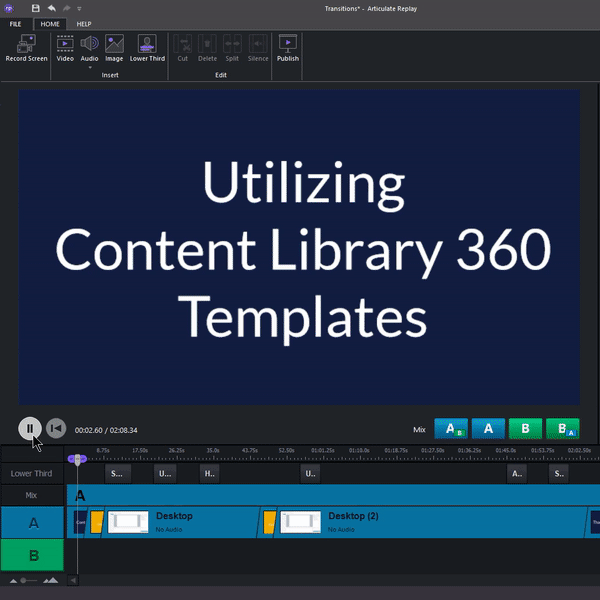

Custom subtitle graphics fade in and out in Replay 360

I hope this empowers you to add more to your Replay 360 endeavors or to begin developing in the tool for the first time. Should you have questions or thoughts, please reach out to us or comment below!

John Berendes
~ John B.
